Location (I06.U1.406):
Specification:
- Manual stage
- Light sources: halogen lamp +CoolLED p300 SB light
- Detectors: Zeiss ICm1 monochrom CCD camera (1388×1038 Pixel))
- Software: Zen 2.1
- Objectives (M27 thread):
- Plan-Apochromat 10x/0.45 (420640-9900), WD=2.1 mm
- Plan APOCHROMAT 20x/0.8 (420650-9901), WD=0.55 mm (D=0.17 mm)
- empty
- Plan-Apochromat 40x/1.2 Water, WD=0.28 mm
- Plan APOCHROMAT 20x/0.5 dipping (420650-9901), WD=0.22mm
Description

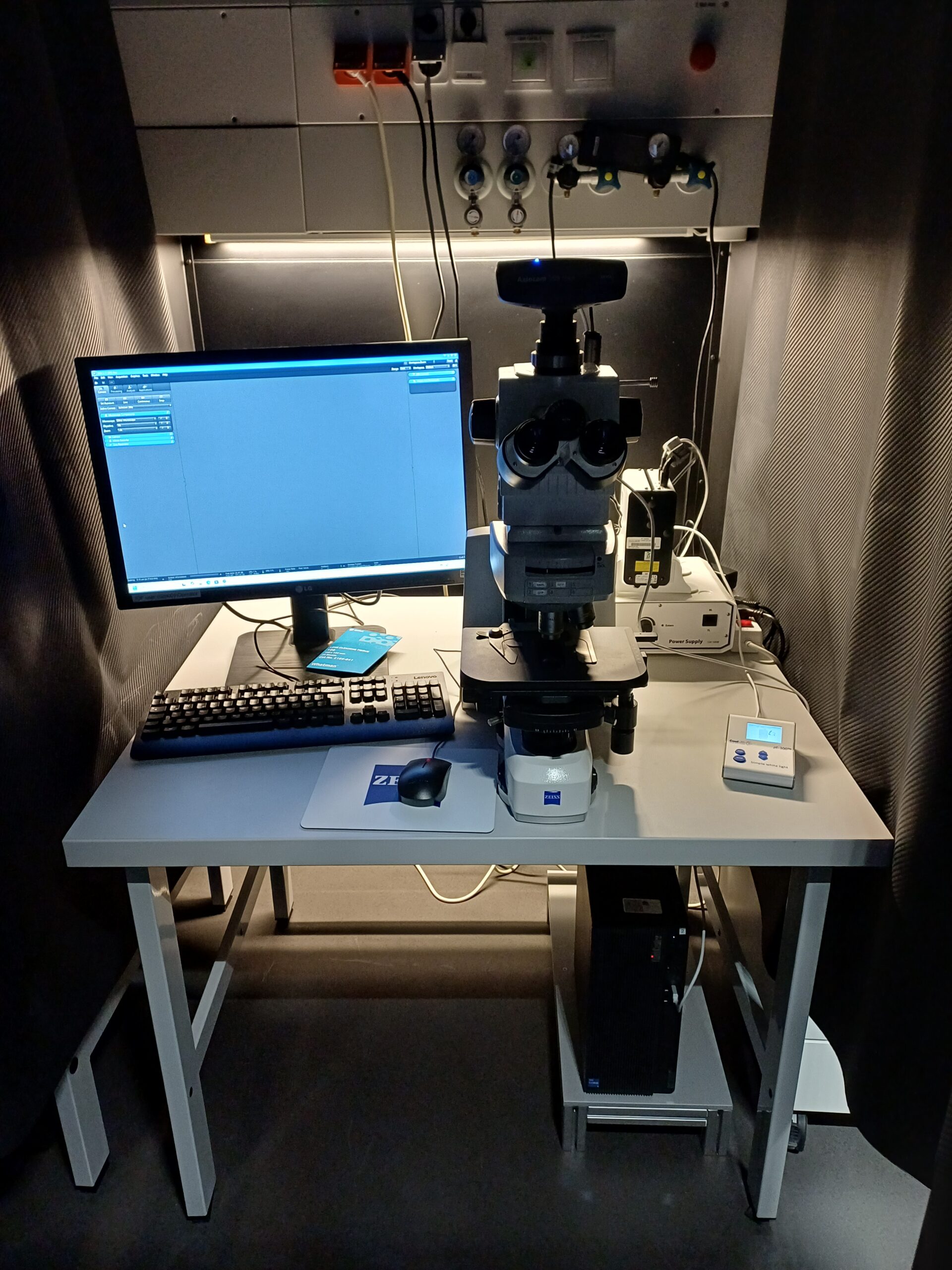

Non-automated Widefield microscope for quick checking of samples and ‘snap-shot” image capture options
Additional information
| Building | i04 |
|---|---|
| Camera / Detector | CCD |
| Fluorescent Lightsource | LED: 355-365nm, LED: 430-450nm, LED: 545-555nm, LED: 640-650nm |
| System_Specification | Illumination: Fluorescence, Illumination: Bightfield |
